Web and Mobile Server Server Sync

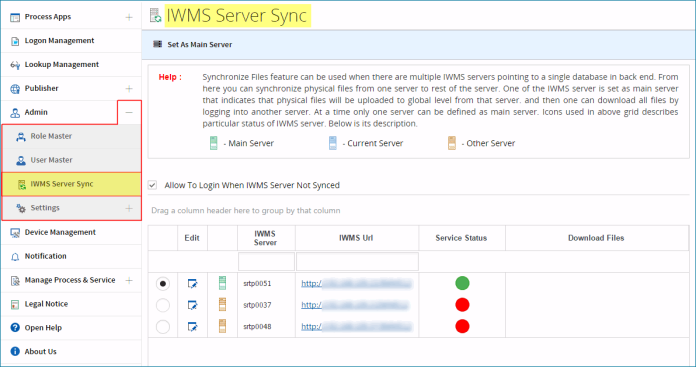

The Innowera Web and Mobile Server can be installed on multiple servers pointing to a single Innowera Web and Mobile Server database created during the Innowera Web and Mobile Server setup on the main Innowera Web and Mobile Server server. The process files when published on one of the Innowera Web and Mobile Server server, the physical files are stored on the server directory. So to make other Innowera Web and Mobile Server servers pointing to the same database work properly, they should have these files in their server directory too. Synchronize files option avoids the manual copy of physical files to every Innowera Web and Mobile Server servers which use the same Innowera Web and Mobile Server database. This feature synchronizes the physical files from one server to remaining other servers. This also allows to set a server as a main server such that physical files of the main server can be uploaded to Innowera Web and Mobile Server database, later this can be downloaded on other Innowera Web and Mobile Server servers present in Server List. Go to Admin > Innowera Web and Mobile Server Server Sync.
Tag |
Description |
||
|---|---|---|---|
Set as Main Server: |
Select Innowera Web and Mobile Server server to make selected server as the Primary/Main Server. The remaining servers will act as secondary servers. |
||
Allow To Login When IWMS Server Not Synced: |
This facility is availed in Innowera Web and Mobile Server to Restrict/Allow the access of Mobile Device, if there is a lack of synchronization between Current Server and Main Server. ·If this option is enabled then device will be able to login on current server, though sync features are not accessible because the current server is not yet synchronized with the main server. ·On disabling this option the user will be restricted to login into the current server until and unless the current server is synchronized.
|
||
Innowera Web and Mobile Server Server List: |
Displays the list of all Innowera Web and Mobile Server servers which point to same Innowera Web & Mobile Database. |
||

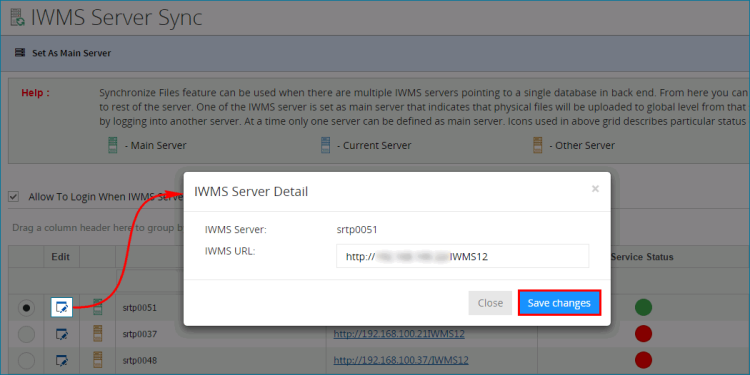

Edit: |
Allows to change/Update the Innowera Web and Mobile Server URL. |
||
Upload files: |
All the physical files from the main server can be uploaded to the Innowera Web & Mobile database by clicking on the upload button. These uploaded files will then be available to all other secondary servers for download. |
||
Download Files: |
This option allows to download files from database by clicking on the download button. Select the secondary server to download files. |
Synchronize files feature will work only when multiple servers pointing to a single Innowera Web and Mobile Server database are setup with same Virtual Directory name during Innowera Web and Mobile Server installation on servers.
