Configure Control Panel Settings
Innowera Control Panel provides the necessary level of governance and control over Users, Process files and SAP system. Innowera Control Panel settings defines who can access which process files under which SAP system. In this way it gives a powerful and controlled mechanism to manage how Innowera Web and Mobile Server is being used (or not used) within your enterprise.
Tag |
|
Description |
|---|---|---|
|

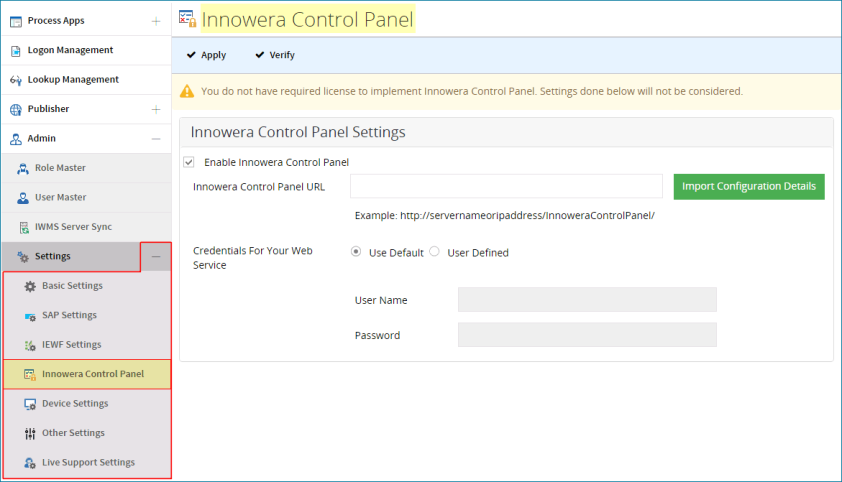

Enable Innowera Control Panel : |
Master flag that enables or disables Innowera Control Panel for Innowera Web and Mobile Server. If this option is disabled, all Innowera Control Panel related menus will be disabled. If this option is enabled, the correct connection parameter to connect to Innowera Control Panel shall be provided. |
|
|
Innowera Control Panel URL : |
Enter URL of the server where the Innowera Control Panel is installed. |
|
|
Import Configuration Details : |
This option automatically detects all the settings from given configuration file (configuration.icf which is exported from Innowera Control Panel). |
|
Credentials For Your Web Service : |
Select valid credentials in this section to login into control panel server. |
|
Use Default : |
Selecting this option will implement default credentials that are already configured by the user |
|
User Defined : |
Select this radio button in order to provide custom other user name and password rather than the default ones. |
|
User Name : |
Enter valid windows user name where the Innowera Control Panel is installed. |
|
Password : |
Enter valid windows password where Innowera Control Panel is installed. |
|
Apply : |
Apply the changes to Innowera Web and Mobile Server. If Innowera Control panel is not valid, it will still not define any error here. It can be seen while process is in action. |
|
Verify : |
Click this button to verify the user name and passwords that are configured |
|

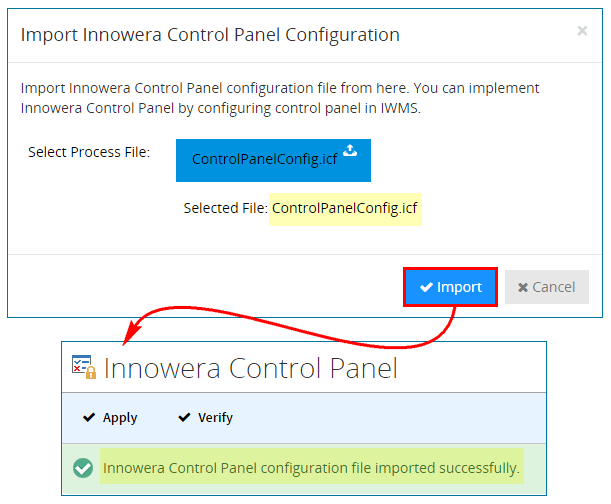

To import Innowera Control Panel settings,
- Enable the Enable Innowera Control Panel option.
- Provide the Innowera Control Panel URL or select Import Configuration Default to import the configuration file that was exported from control panel by admin.
- Select Apply to apply this changes to Innowera Web and Mobile Server.
Note: If Import Configuration Default is selected, it will apply all the configuration settings amalgamated into the configuration file only. Any changes in Innowera Control Panel after exporting that particular file are not reflected into Innowera Web and Mobile Server.
