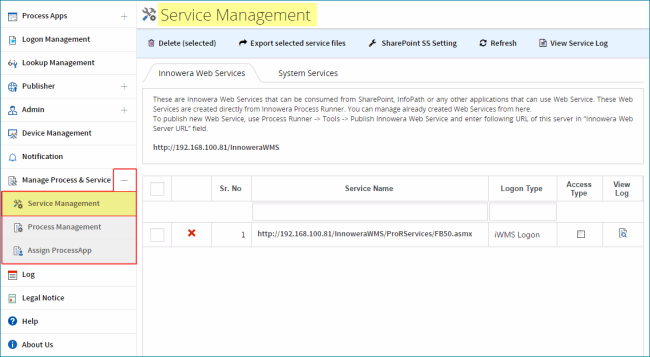

Service Management
The web service is created directly from Process Runner by entering URL of the IWMS server and providing details of the process file. To publish new Web Service, use Process Runner > Tools > Publish Innowera Web Service and enter following URL of this server in Innowera Web Server URL field. The generated web service is then displayed in this page and can be managed from here. With web services you can exchange data between different applications and different platforms. These services can be used in applications that use web services such as SharePoint, InfoPath.

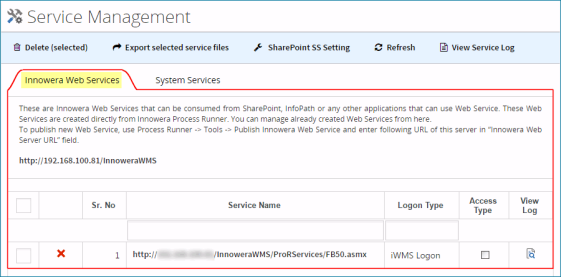

Innowera Web Services
Innowera Web and Mobile Server allows the utilization of web services that are directly created in Process Runner. This tab of Service Management screen is used to configure the web services.
Select the Web Service link to run the created web service.
Tag |
Description |
|---|---|
Delete (Selected): |
Allows to delete selected services file. |
Export Services (Selected): |
Allows to export services file. InnoweraWebServices.zip is the default file name of the zip file. Save the file. Note: Please refer fig (1.1.3) given below |
Sharepoint SS Setting : |
Allows to set the windows user name credentials specified in SharePoint for Secure Store Service application. |
Refresh : |
This option allows to refresh the list of services listed in the grid. |
View Service Logs: |
Select View Service Logs to view all the service logs of Service Names listed in the grid. To know more about service logs refer: Web Services Logs |
Access Type : |
Selecting this option will not allow the user to run the service. |
View Log : |
Select View Log for a particular IWMS Server to view its Web Services Logs. |

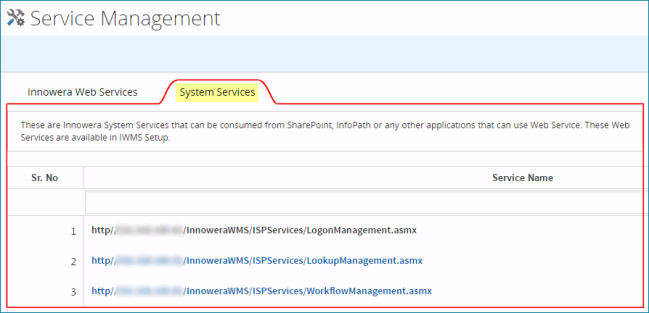

System Service
User can access system services that can be accessed from SharePoint, InfoPath or any other applications. These Web Services are accessed from the System Services tab of Service Management.
