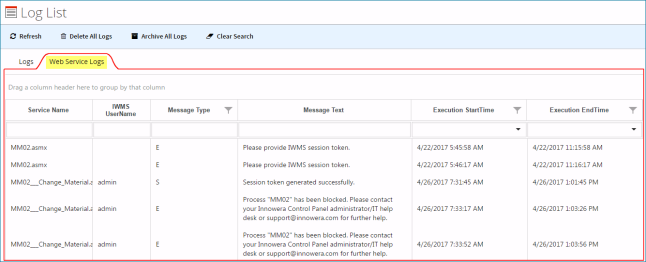

View Web Service Logs

The Web Service Logs are utilized to keep track of actions that are performed on SAP through Innowera Web and Mobile Server.

Webservices-Logs

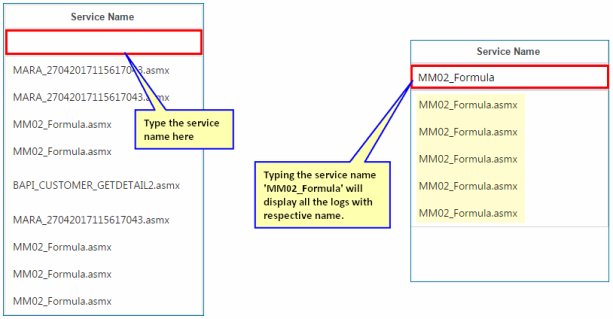

Service Name

Service Name column has the entries of all the services run by users in Innowera Web and Mobile Server. This column is supported by ServiceName filter which can be used to filter the logs with respect to a specific user.

ServiceName-1

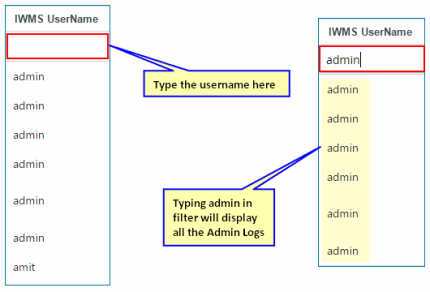

IWMS UserName

This field displays the name of the user by whom the action was performed. The filters enables the admin to monitor the actions in user-wise pattern as illustrated in the following screenshot.

UserName-1

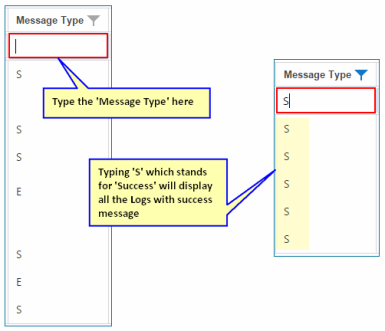

Message Type

The message type column displays the conclusion whether it was Start, Success, Information, or Error. Filter field is provided here to search for the logs with similar message type.

MessageType-1

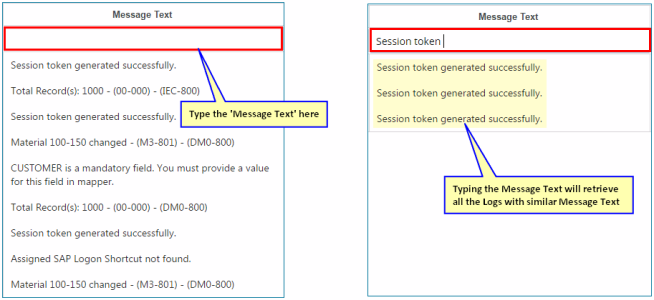

Message Text

Message text field displays the message text of the log that is related to conclusion of the action. The filter provided here will allow the grid to display messages that are similar to the message that is typed in the filter field.

MessageText

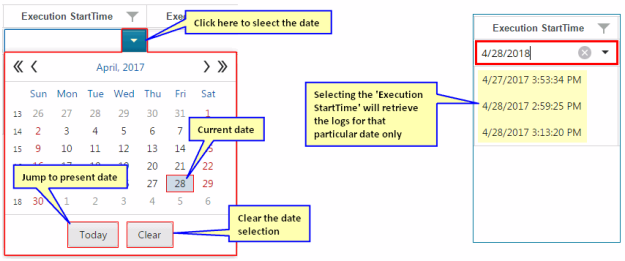

Execution StartTime

This field displays the Start Date and Time of the action initialization. The filter field is used to filter the log records with respect to their execution start time.

StartTime-1

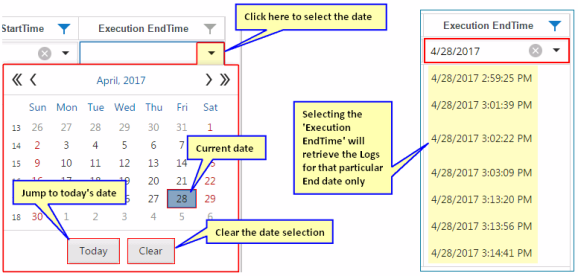

Execution EndTime

This field displays the Start Date and Time of the action initialization. The filter field is used to filter the log records with respect to their execution end time.

EndTime-1

Operations on Web Service Logs

Tag	Description
Delete all Logs:	'Delete all Logs' will delete all the logs from the Web Service Log table.
Refresh:	Refresh button' is used to update the log list for the background changes. Moreover it also clears all the filters entered (if any)
Clear Search:	'Clear Search' button will remove all the filters while monitoring logs.
Archive all Logs	This tool is used to archive all the logs to zip folder.
