Manage Global Central Settings

This feature helps you to centrally pass the global setting for each user of Process Runner from Innowera Control Panel.

This section contains the following topics:

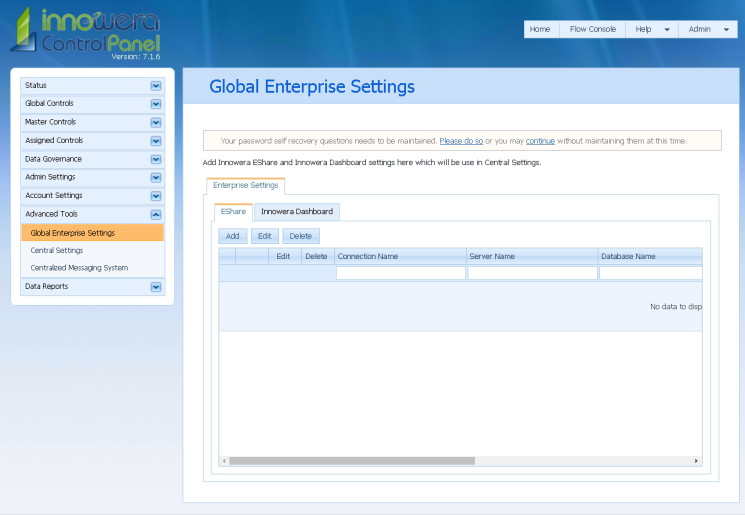

EShare

EShare allows you to share and collaborate Process files created by different users within an enterprise. Instead of placing the Process files on your network drive or local computer, you can keep them at a central location so that other Process Runner users can use and share the Process files. You can deploy EShare while setting up Process Runner or at a later stage. The Central Settings contains the list of active central settings in which this EShare connection is configured/enabled. You can select any of the active central setting from the grid and edit them directly using the edit option. For more information about Central Settings, see Manage Central Settings.

Add EShare Conection Details

This section explains how to add a new EShare connection details of the Innowera EShare instance to Innowera Control Panel.

To add EShare connection,

  1. Enter a name for the EShare connection in Connection name.
  2. Select one or both the following options:
    • Database Configuration
    • Service Configuration
  3. If you select Database Configuration, enter the following details, and test the connection:
    • Database Server name or IP: Indicates the host name or IP address of the computer on which EShare is installed. The port number should follow the host name or IP address. For example, <HostName/IPAddress>, <PortNumber>. By default, the port number is 1433.
    • Database: Indicates the name of the Innowera EShare database.

      Note: Contact your EShare administrator for the host name or IP address of the computer on which EShare database is installed.

    • Authentication Mode: Indicates the authentication mode that must be used to connect to Innowera EShare. For SQL Server Authentication, user name and password are also required.

      Note: Contact your system administrator to know which authentication mode to use.

    • Case sensitive windows user name comparison: Indicates that case-sensitive user name comparison will be enforced while logging in to the EShare server.
  4. If you select Service Configuration, enter the following details:
    • URL: Indicates the URL of the Innowera EShare instance.
    • Use default: Indicates that the default credentials are used to sign in to EShare.
    • User defined: Indicates that the domain name and password that you enter in Username and Password boxes are used to sign in to EShare.
  5. If you select both Database Configuration and Service Configuration, select one of the options in the Default Configuration box. The default Innowera EShare configuration is selected.
  6. Select Save. The configuration details are saved.

Edit EShare Connection Details

This section explains how to edit an existing EShare connection.

To edit an EShare connection,

  1. Select the EShare configuration that you want to edit, and then select Edit. The details of the EShare configuration appears.
  2. Update the configuration options, and select Update. The EShare configuration is updated with the changes.

Delete EShare Connection Details

This section explains how to delete an existing EShare connection.

To delete an EShare connection,

  • Select the EShare configuration that you want to delete, and then select Delete. The EShare configuration is deleted.

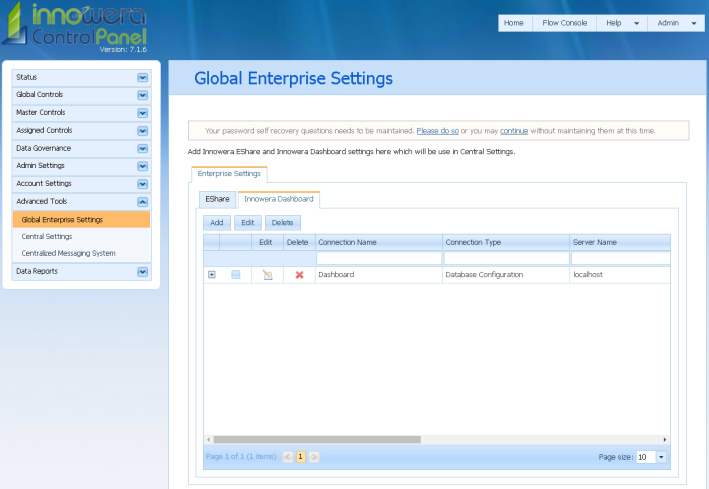

Innowera Dashboard

Innowera Dashboard provides a graphical representation of how Innowera products such as Process Runner, Process Runner DB, and Process Runner Excel Add-in are used within an enterprise. It provides management visibility into life cycle and test management reports, metrics and graphical view of how users are using the Innowera products. You can configure your Innowera Dashboard instance in Innowera Control Panel to view the usage of Process Runner, Process Runner DB, and Excel Add-in within an enterprise.

Add Innowera Dashboard Connection Details

This section explains how to add the connection details of the Innowera Dashboard instance to Innowera Control Panel.

To add an Innowera Dashboard connection,

  1. Enter a name for the Innowera Dashboard connection in Connection name.
  2. Select one or both of the following Innowera Dashboard configuration types:
    • Database Configuration
    • Service Configuration
  3. If you select Database Configuration, enter the following details:

    • Database Server name or IP: The host name or IP address of the computer where the Innowera Dashboard database is installed. The port number should follow the host name or IP address. For example, <host_name/ip_address>, <port_number>. By default, the port number is 1433.

      Note: Contact your Innowera Dashboard administrator for the host name or IP address of the computer where Innowera Dashboard database is installed.

    • Database: The name of the Innowera Dashboard database.
    • Authentication Mode: The authentication mode that must be used to connect to Innowera Dashboard. Select one of the following authentication modes:
      • Windows Authentication
      • SQL Server Authentication

        Note: Contact your system administrator to know which authentication mode to use. The username and password is applicable only to SQL Server Authentication.

    • Username and Password: The SQL Server Authentication user credentials.
  4. If you select Service Configuration, enter the following details:
    • URL: The URL of the Innowera Dashboard instance.
    • Use default: The default credentials associated with the Innowera Dashboard instance. The User and Password boxes are not available for this option.
    • User defined: The logon credentials of the Innowera Dashboard instance.
  5. If you want to test the configuration details, select Test.
  6. If you select both Database Configuration and Service Configuration, select one of the options in the Default Configuration box. The default Innowera Dashboard configuration is selected.
  7. Upload Timing: Select one of the following options:
    • Manually: The records are uploaded manually.
    • End of each Run: The records are uploaded automatically after each successful run of process file.
    • On Exit: The records are uploaded at the end of the collective run of Process Runner. During this process if an error occurs during the first collective run, then Process Runner logs the error in a log file and continues the run of other files in the collective run.
  8. Select the Upload New Records Only option to upload the new records in the database without uploading the existing records.
  9. Select Save. The configuration details is saved.

Edit Innowera Dashboard Connection Details

This section explains how to edit an existing Innowera Dashboard connection.

To edit an Innowera Dashboard connection,

  1. Select the Innowera Dashboard configuration that you want to edit, and then select Edit. The details of the Innowera Dashboard configuration appears.
  2. Update the configuration options, and select Update. The Innowera Dashboard configuration is updated.

Delete Innowera Dashboard Connection Details

This section explains how to delete an existing Innowera Dashboard connection.

To delete an Innowera Dashboard connection,

  • Select the Innowera Dashboard configuration that you want to delete, and then select Delete. The Innowera Dashboard configuration is deleted.
