Configure F4 Help Lookup
SAP GUI returns a list of values for several fields (and not the help screen that states further required information) upon F4 keypress. The same can be achieved in Process Runner. You can use the F4 Help Lookup feature in Process Runner to look up the values of such SAP Fields directly in F4 Help configuration window.
Usually F4 Help Look up can be generated automatically from F4 Help Configuration using Auto Help Generator option. However, F4 Help configuration can be implemented if the extended function module for Transaction that insightsoftware provides is implemented in Process Runner. Please create a support case on Salesforce to request for the implementation of this extended function module for Transaction.
Manual generation of F4 Help lookup is applicable when the extended function module for Transaction cannot be implemented. This section provides guidelines to manually generate the F4 Help Lookup while implementing F4 Help Configuration option in the Mapper. To manually generate the F4 Help Lookup, the user will have to collect several parameters like Elementary Srch hlp, Short description, Search help parameter and Description of Search Help Parameter from SAP.
Assuming a scenario that we need to generate lookup of MATKL field of MARA table using SE11 transaction code, we will show the procedure in SAP and its configuration in Process Runner:
- Expand the following sections to understand the steps of retrieving the above mentioned parameters from SAP.
Steps to retrieve required parameters from SAP
- Start SAP Logon and log in to the SAP Server.

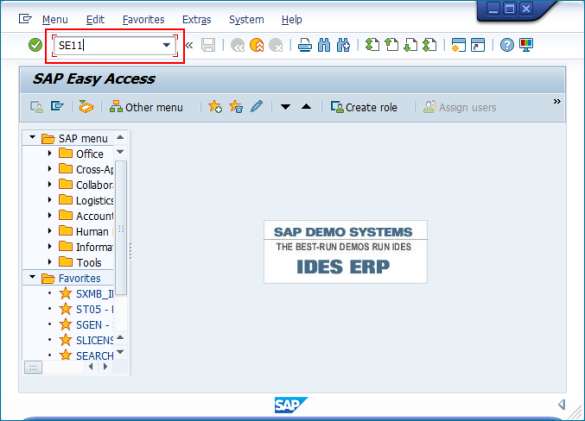

- Start SE11 transaction.

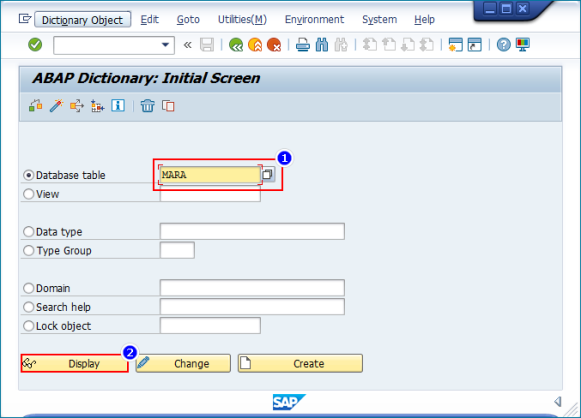

- Enter MARA in Database table field and select Display as shown in the following screenshot.
- Select the MATKL field and go to Entry help/check tab as shown in the following screenshot.
- Double click on H_T023 (Srch help parameter) at Srch help column of MATKL field.

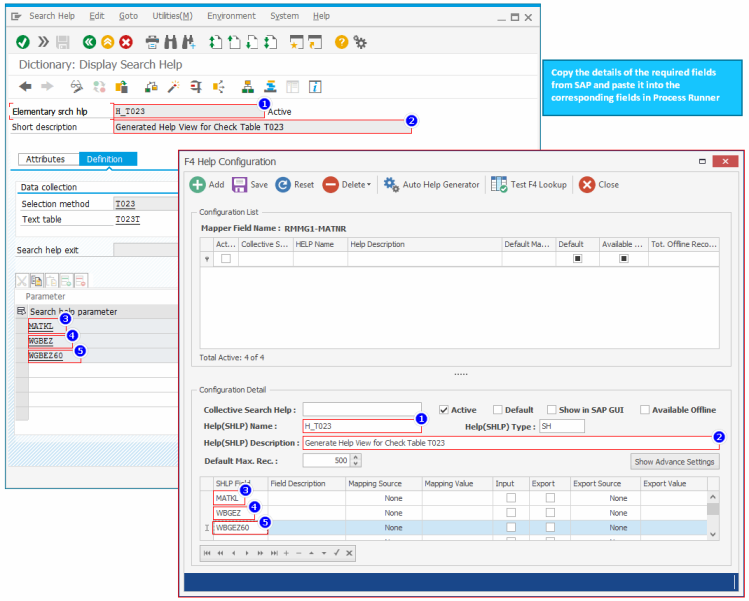

- Copy the following details and paste it in Process Runner as illustrated in the table and image below.
SAP Detail
Process Runner Field
Elementary srch hlp (H_T023) Active
Help(SHLP) Name
Short Description (Generated Help View for Check Table T023)
Help(SHLP) Description
Search Help Parameter
- MATKL
- WGBEZ
- WGBEZ60
SHLP Field

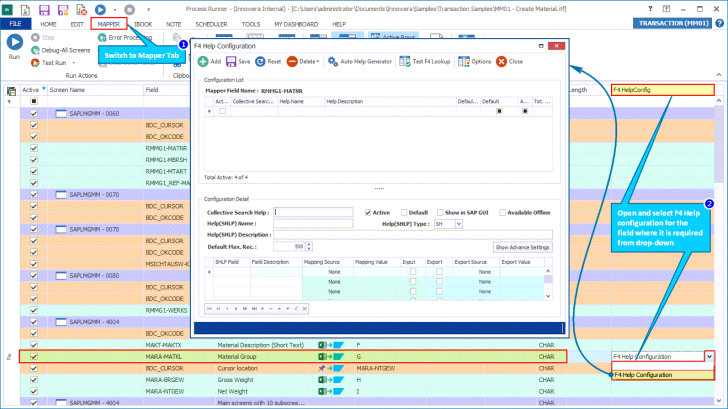

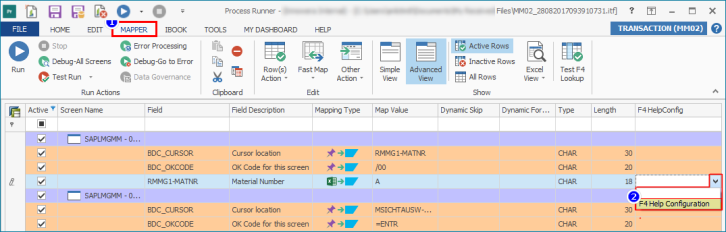

- To configure the F4 Help manually in Process Runner, open the Process file and go to Mapper tab, click on F4 HelpConfig field and select F4 Help Configuration from the drop down as shown in the image below.

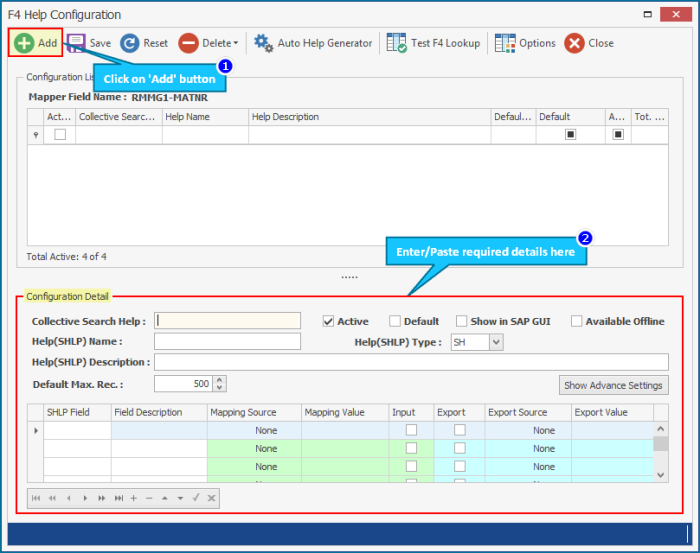

- To add configurations details manually, click on Add button and enter/paste the following details as listed below.
- Help (SHLP) Name
- Help (SHLP) Description
- SHLP Field (column in the grid)
Note: Ensure that it is essential to have at least one field in the grid as Input and one as Export with its source configuration. Refer to the toggle of the Step-1 to enter the required details from SAP.

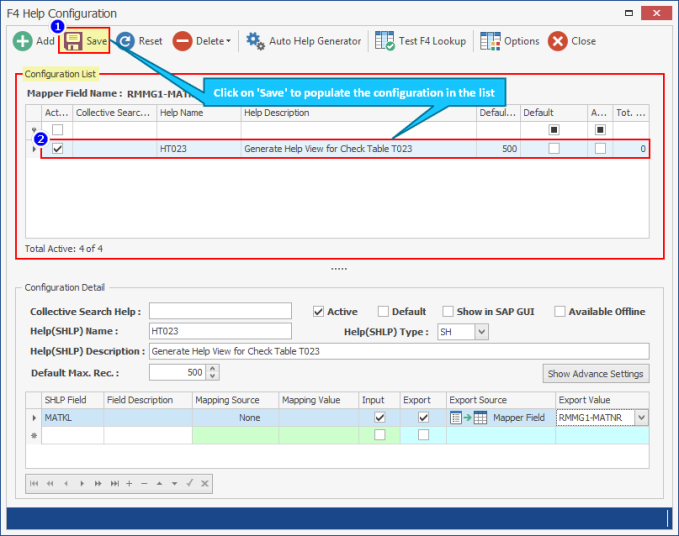

- Select Save.F4 Help Lookup is automatically populated in the list.
See following sections to understand the functionality of F4 Help Configuration window.
-
Delete
The F4 Help Configuration settings are saved wherein each new configuration is indexed in the grid. These Configuration profiles can be deleted using options at Delete drop-down.

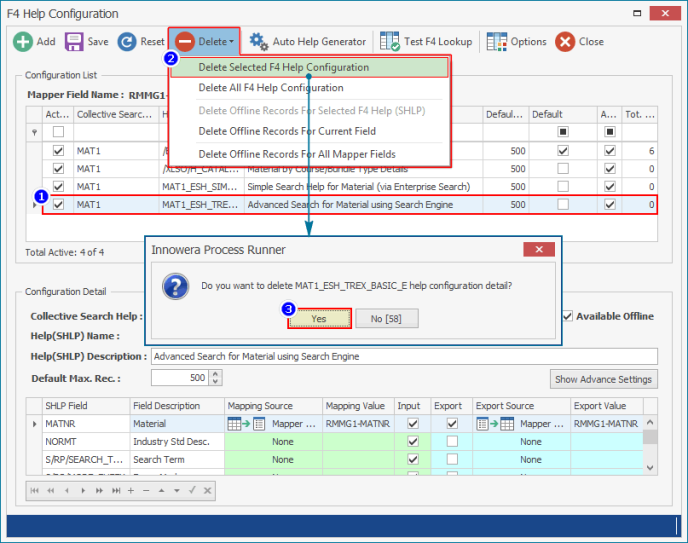

To delete the existing F4 Help Configuration listed in the grid
- Go to Mapper tab and select Test F4 Look up.
- Select the F4 Help Configuration that is to be deleted from the grid.
- Select Delete and select relevant option from the drop-down.
Refer to the table given below to understand the influence of various options.
Option
Description
Delete selected F4 Help Configuration
Select this option from drop-down to delete the selected F4 Help Configuration from Process Runner.
Delete all F4 Help Configuration
Select this option to delete all the saved F4 Help Configuration that exist in Process Runner.
Delete Offline Records For Selected F4 Help (SHLP)
Process Runner tends to save F4 Help Configuration as an offline record in the grid. Select this option to delete the offline record of F4 Help Configuration.
Delete Offline Records For Current Field
Select this option to delete all the indexed Offline Records of F4 Help Configuration.
Delete Offline Records For All Mapper Fields
Select this option to delete entire Offline Records of all Mapper fields.
-

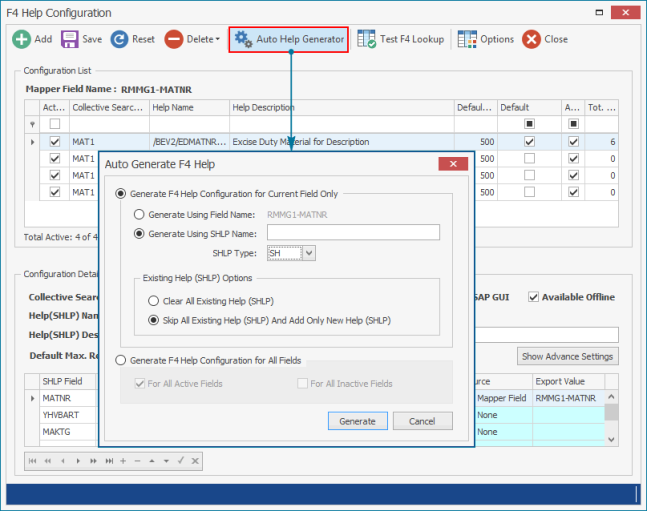

Auto Help Generator
Refer to the table given below to understand the influence of various options.
Module Option Description/Sub Option Generate F4 Help Configuration for Current Field Only
Select this option to instruct the Process Runner to automatically generate F4 Help for current field which is selected
Generate Using Field Name
Use this option if the F4 Help configuration is to be generated using 'Field Name'
Generate Using SHLP Name
Enter the corresponding data to be searched whether from Collective Search Help or SHLP Name
Generate Using SHLP Type
Select the SHLP type from the drop-down menu corresponding to the SHLP name that is entered.
Generate F4 Help Configuration for All Fields
Select this option to instruct the Process Runner to automatically generate F4 Help for all the fields
For All Active Fields
Implementing this option will instruct Process Runner to automatically generate F4 Help for all the active fields
For All Inactive Fields
Implementing this option will instruct Process Runner to automatically generate F4 Help for all the Inactive fields
-

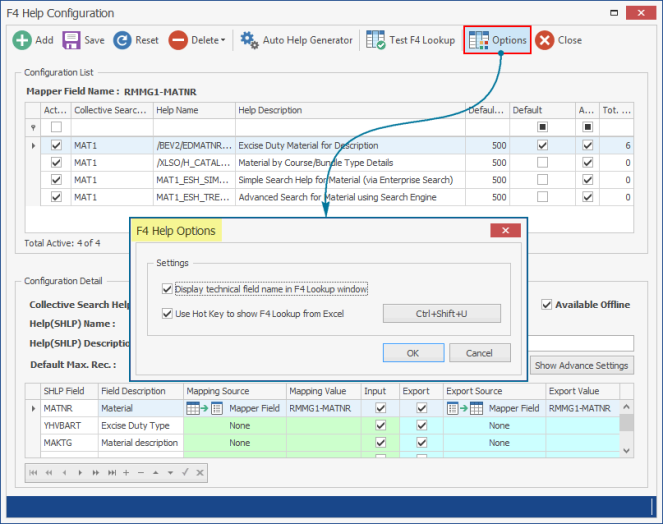

F4 Lookup Options
Refer to the table given below to understand the influence of various options.
Options Description Display technical field name in F4 Lookup window
Selecting this option displays corresponding technical of each field in F4 Lookup window.
Use Hot Key to show F4 Lookup from Excel
Selecting this option enables user to set Hot Key to execute F4 Lookup from Excel.
Refer to Test F4 Lookup for more information.
-

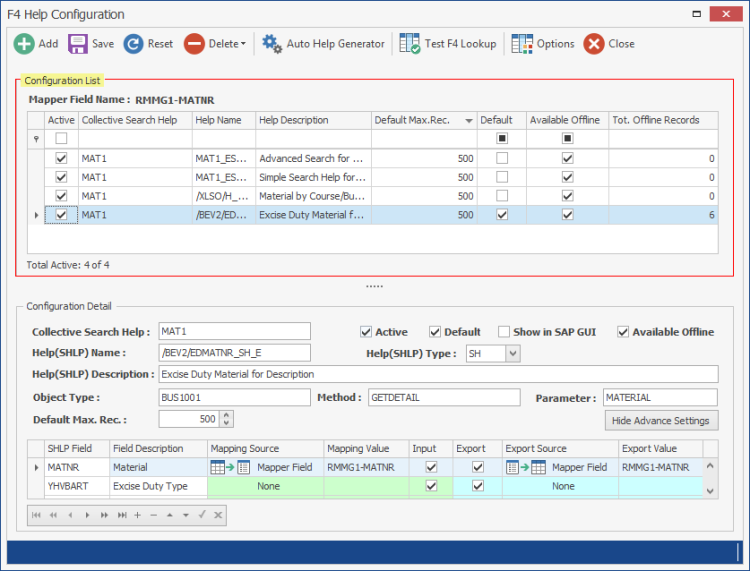

Configuration List
Refer to the table given below to understand the influence of various options.
Module Options Description Mapper Field Name
This section will display the particulars of every Filed Name for which the F4 Help is being configured
Active
Check/Uncheck this options to enable/disable the field in the F4 Help
Collective Search Help
This section will display the name of the main Help filter listed in the F4 Help
HELP Name
This column will display the name of the Help parameters fo filter out the F4 Help
Help Description
Displays the description of the F4 Help
Default Max.Rec.
Displays the maximum help records configured to be retrieved from SAP
Default
Activate the check-mark for this option if the selected help name is to be made as the default
Available Offline
Displays the F4 help that are available in offline mode
Tot. Offline Records
Displays the total number of offline records
-

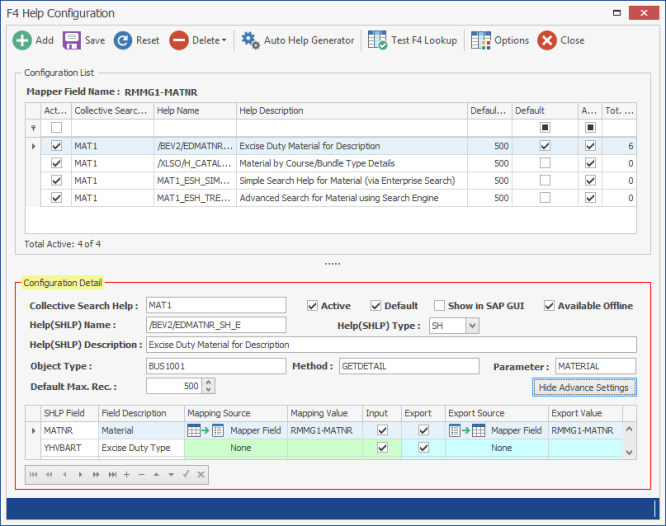

Configuration Details
Refer to the table given below to understand the influence of various options.
Option Description Collective Search Help
Enter the name of the mail help filter that is to be configured in the F4 Help
Active
Activate the check-mark of this option to keep the F4 help in active mode
Default
Activate the check-mark for this option if the selected help name is to be made as the default
Show in SAP GUI
Activate the check-mark of this option to allow the Process Runner to display the F4 Help in SAP GUI
Available Offline
Activate this check-mark for this option if offline availability is required for the selected help name
Help(SHLP) Name
Enter the name of the Help fields to be configured for F4 Help
Help(SHLI) Type
Select the type of F4 Help from drop-down list
Help(SHLP) Description
Enter the description for the F4 Help
Object Type
Enter the type of Object
Method
Enter the method that is to be set in F4 Help
Parameter
Enter the parameter name that is to be that is to be passed to process the method
Default Max.Rec.
Set the maximum help records to be retrieved from SAP
Note: The F4 functionality in BAPI is implemented from 5.10.23.xxxx version. We recommend that you upgrade the Process runner to the current version if it is lower than 5.10.23.xxxx.
