Back up Innowera Control Panel Database

The steps to back up Innowera Control Panel differs depending upon the connection type used.

To back up database,

• Connection type Microsoft Access

  1. Go to the following location on your system: <drive>:\ Inetpub\wwwroot\InnoweraControlPanel\App_Data.
  2. Select and copy the files iControlPanel.mdb and iControlPanelLog.mdb to the backup location.

• Connection type SQL

  1. Open SQL Server Management Studio.
  2. Connect to the SQL Server currently selected in the Innowera Control Panel database settings.

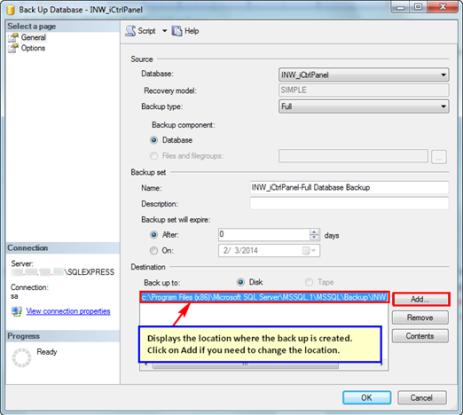

  3. Right-click the Innowera Control Panel database, and select Tasks > Back Up. The Back Up Database - <database_name> page appears.



  4. Accept the default values, and click OK. The Innowera Control Panel database back up is completed. Optionally, you can click Add to change the location of the database backup.
