Install Process Runner Excel Add-in

Prerequisites

• Ensure that your system meets the system requirements of the Process Runner Excel Add-in application. For information about the system requirements, see System Requirements for Process Runner Excel Add-in .
• When you upgrade to Process Runner Excel Add-in 23.3 or newer versions, if you are currently using a version older than 23.3, you need to uninstall the older version.
• Ensure that you restart your system if the .NET Framework is not installed and if Process Runner Excel Add-in is installed using silent installation mode.

Install Process Runner Excel Add-in

This section provides information about installing Process Runner Excel Add-in.

To install Process Runner Excel Add-in,

1. Run ProR_Excel_Add_in_Setup.exe as an administrator. The Welcome to the Process Runner Excel Add-in Wizard window appears.
2. Select Next. The End-User License Agreement window appears.
3. Select the checkbox to accept the terms and conditions displayed, and select Next. The Custom Setup window appears with the default installation folder selected for Process Runner Excel Add-in and Innowera Assistant.



4. In the Custom Setup window, select any of the following:
   • Select Next to continue with the default destination folder.
   • Select Browse and navigate to the folder location of the destination folder. Select Next.

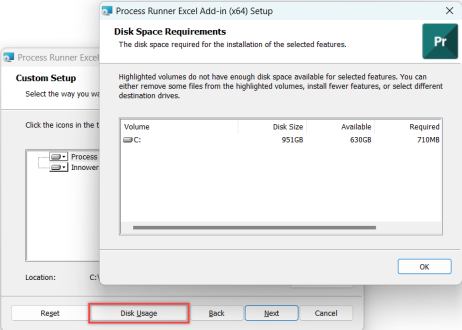

5. Optionally, select Disk Usage to review the disk space requirements for the installation of the selected features.



6. Select Next. The Ready to install Process Runner Excel Add-in window appears.
7. Select Install. The installation process starts, and the status of the installation appears. After the installation process is complete, the Completed the Process Runner Excel Add-in Setup Wizard window appears.
8. Select Finish. The Process Runner Excel Add-in is installed, and the Process Runner tab appears in Microsoft Excel.
9. After installation, to use Process Runner Excel Add-in, perform one of the following steps in Excel:
   • If your organization is using the cloud license model, and when you try to select any option on the Process Runner tab for the first time, the Logon dialog appears:
     1. Enter your email ID associated with your organization and select Continue.



     2. Enter your Email Address and Password. Select Sign in. The Verification dialog appears.
     3. Enter the verification code sent to your email and select Verify code. You are signed in to the application.
   • If your organization is using the legacy license model, you must first request and load the license. For more information, see Manage License.
