Manage Schedules

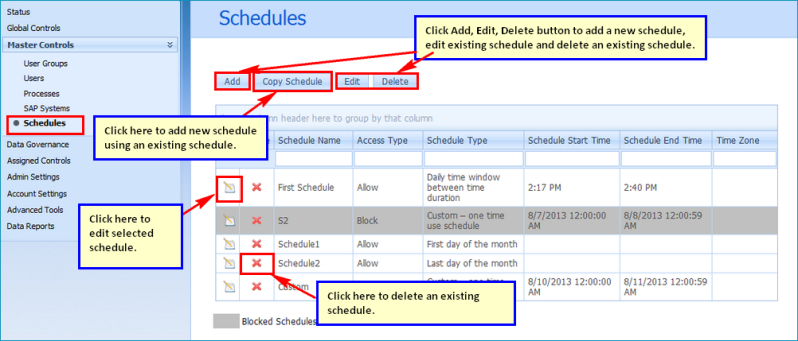

The Schedules page is as shown in the following screenshot.
Schedules displays the following details in tabular form.
| Options | Description |
|---|---|
Schedule Name |
All defined schedules will be listed here. |
Access Type |
This option will display schedule behavior (Allow/Block) respectively. |
Schedule Type |
This option will display how schedule must run? |
Schedule Start Time |
Schedule Start Time will be listed here. |
Schedule End Time |
Schedule Start Time will be listed here. |
Time Zone |
Displays Time Zone for which Schedule will be Allowed/Blocked. |
Add Schedule
Basic Details
- Schedule Name: Enter the schedule name.
- Access Type: Select the access type as allow or block. If you select access type as "Allow", then this Schedule will be enabled for that particular schedule date/time setting and if access type is "Block", then the schedule will be blocked for that particular date/time setting and the remaining date/time schedule will work. The 'Block' access has reverse action of 'Allow' access.
Settings
- Schedule Type: This field is used to define a Schedule type.
- First day of the month: Select this option to enable/disable this Schedule on first day of every month.
- Last day of the month: Select this option to enable/disable this Schedule on last day of every month.
- First week of the month: Select this option to enable/disable this Schedule on first week of every month.
- Last week of the month: Select this option to enable/disable this Schedule on last week of every month.
- Daily time window between time duration: Select this option to define a custom fix time to enable/disable this Schedule for Daily basis.
- Monthly time window between time duration: Select this option to define a custom fix time to enable/disable this Schedule for Monthly basis.
- Custom one time: Select this option to define custom fix time to enable/disable this Schedule for once.
- Schedule Date/Time Settings: Enter appropriate Date/Time as per your requirements.
- Time Zone:
- Users Time Zone: Select this option to auto select current Time Zone from users' PC for relevant Schedule.
- Time Zone as per below: Select this option to define another Time Zone apart from user's PC current Time Zone.
Edit Schedule
Select Edit to edit the specific process in the list.
Admin Info
- Created By: Displays the name of the user who created the new schedule.
- Created On: Displays the date and time when the schedule was created. The time displayed is as per user time zone settings.
- Changed By: Displays the name of the user who updated the schedule.
- Changed On: Displays the date and time when the schedule was last updated. The time displayed is as per user time zone settings.
Delete Schedule
Select the Delete icon to delete the specific schedule from the list.
Copy Schedule
- Source Schedule: Select the existing Schedule from the drop-down box.
- New Schedule: Enter the name of the new schedule and select Create.
